HD LED Display Cabinet P2.5mm

  • Leading technology of high grey level and low brightness, contrast ratio 3000:1, processing depth 16bit, refresh rate 3840Hz
  • Wide color range, excellent colour uniformity, no rainbow effect, broadcasting strong stability
  • Seamless, bezel-free with adjusting accuracy of 0.01mm

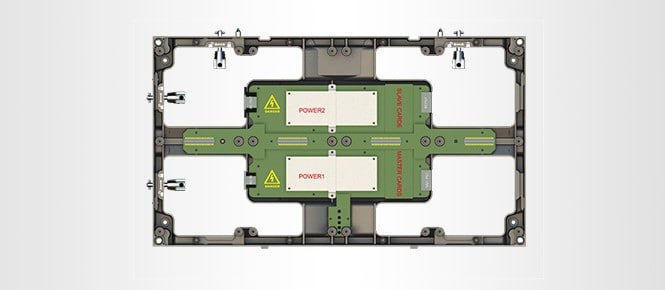

  • Metal cooling structure, no noise and no fans

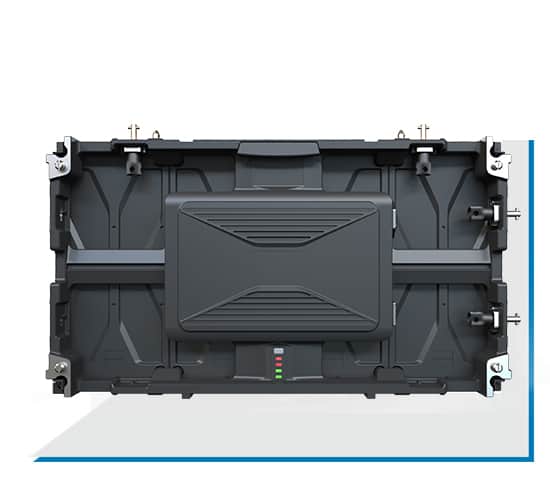

  • Die-cast aluminum design

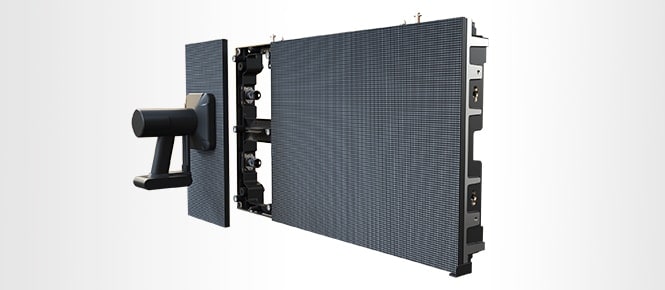

  • Modular front maintenance, supports hot plugging for LED modules
  • 16:9 ratio

Specification

Parameter

HD2.5mm

Physical

Parameter

Pixel Configuration

SMD2020

Pixel Pitch (mm)

2.5

Pixel matrix per panel

240×135

Pixel density(pixels/sq.m.)

160000

Cabinet Dimensions (LxWxH)/(mm)

600×337.5×68

Module Dimensions (LxWxH)/(mm)

150×337.5

Panel material

Die Casting Aluminum

Cabinet weight (kg/panel)

6.85

Module weight (kg/panel)

0.82

Electronic

Parameter

Colour Grayscale (Bit)

13bit

Gray Scale per Colour (level)

8192

Refresh Rate(Hz)

1920-3840

Driving Type

1/23

Signal Transmission Distance (m)

CAT5 cable:<100 m;
Single mode fiber:<10 km

Optical

Parameter

Brightness(nit)

1000

Optimal Horizontal Viewing Angle(°)

160

Optimal Vertical Viewing Angle(°)

160

Electrical

Parameter

AC Input Voltage(V)

AC: 100V-240V

AC Input Frequency(Hz)

50-60

AC Input Power Maximum Value(W/pcs)

85

AC Input Power Typical Value(W/pcs)

30

Circumstance

Parameter

IP rating (Front/Rear)

IP40/IP20

Storage Humidity (RH)

10%~90% non-condensing

Working Humidity (RH)

10%~60% non-condensing

Lifetime Typical Value(hrs)

100000

Installation Type

Cabinet installation type

Fixed
